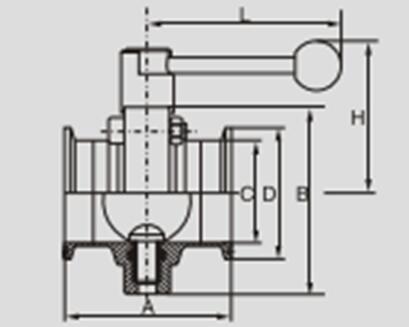

快装蝶阀的尺寸
快装蝶阀常见尺寸表：
|
SIZE |
A |
B |
D |
L |
H |
Kg |
|
20 |
50 |
78 |
19.05 |
130 |
82 |
1.2 |
|
25 |
50 |
78 |
25.4 |
130 |
82 |
1.2 |
|
32 |
50 |
78 |
31.8 |
130 |
82 |
1.05 |
|
38 |
50 |
86 |
38.1 |
130 |
86 |
1.2 |
|
51 |
52 |
102 |
50.8 |
140 |
96 |
1.7 |
|
63 |
56 |
115 |
63.5 |
150 |
103 |
2.1 |
|
76 |
56 |
128 |
76.1 |
150 |
110 |
2.4 |
|
89 |
60 |
139 |
88.9 |
170 |
116 |
2.7 |
|
102 |
64 |
154 |
101.6 |
170 |
122 |
3.05 |
|
108 |
64 |
159 |
108 |
170 |
126 |
3.15 |
|
133 |
80 |
138 |
133 |
190 |
138 |
5.2 |
|
159 |
90 |
215 |
159 |
190 |
153 |
9.2 |
|
|
|
|
|
|
|
|
